Features:

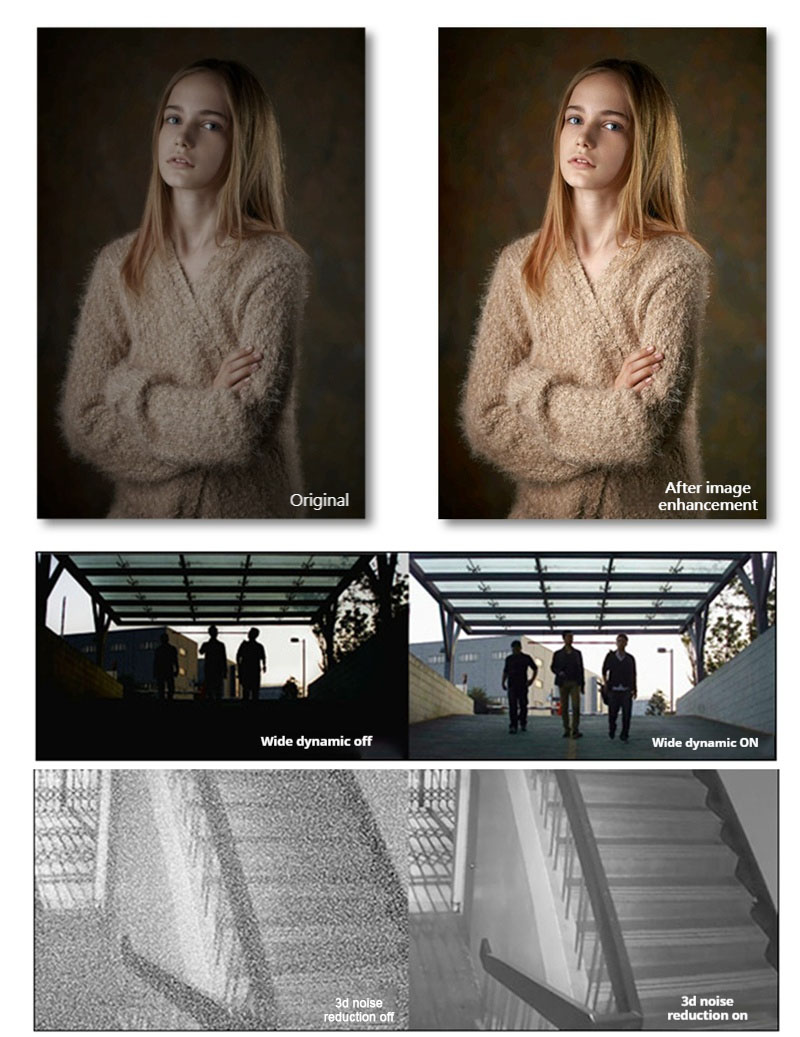

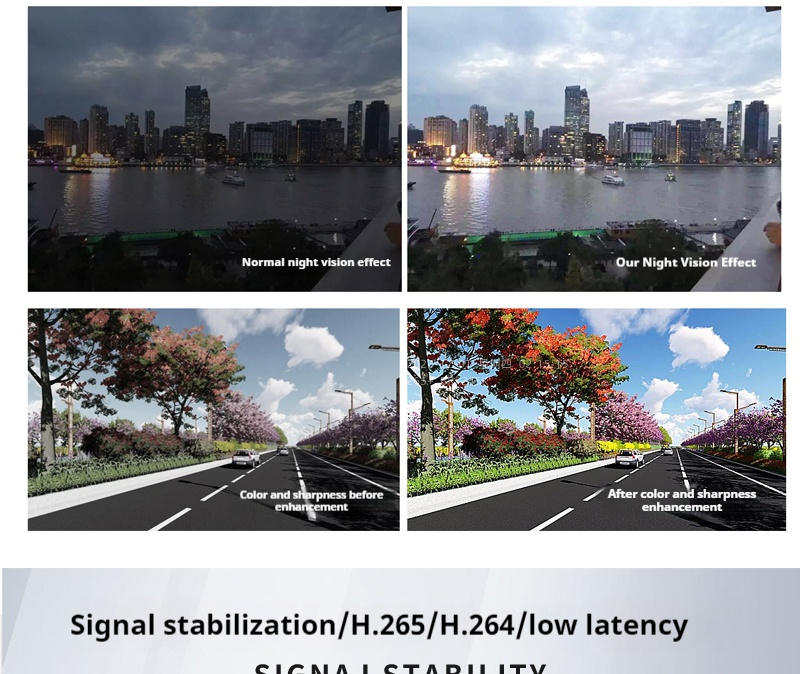

■2D/3D noise reduction, digital wide dynamic, multiple image enhancement and correction algorithms, the image is clear, delicate and realistic.
■Support H.265+, H.265, H.264 encoding, ultra-low bit rate and high-definition picture quality.
■Supports up to 8 million encodings, and supports up to 3840x2160@30 frames and 2592x1944@30 frames.
■Low illumination, low latency, and low power consumption.
■Support ONVIF2.4 standard protocol and GB28181 protocol, and can be connected to third-party backend/platform.

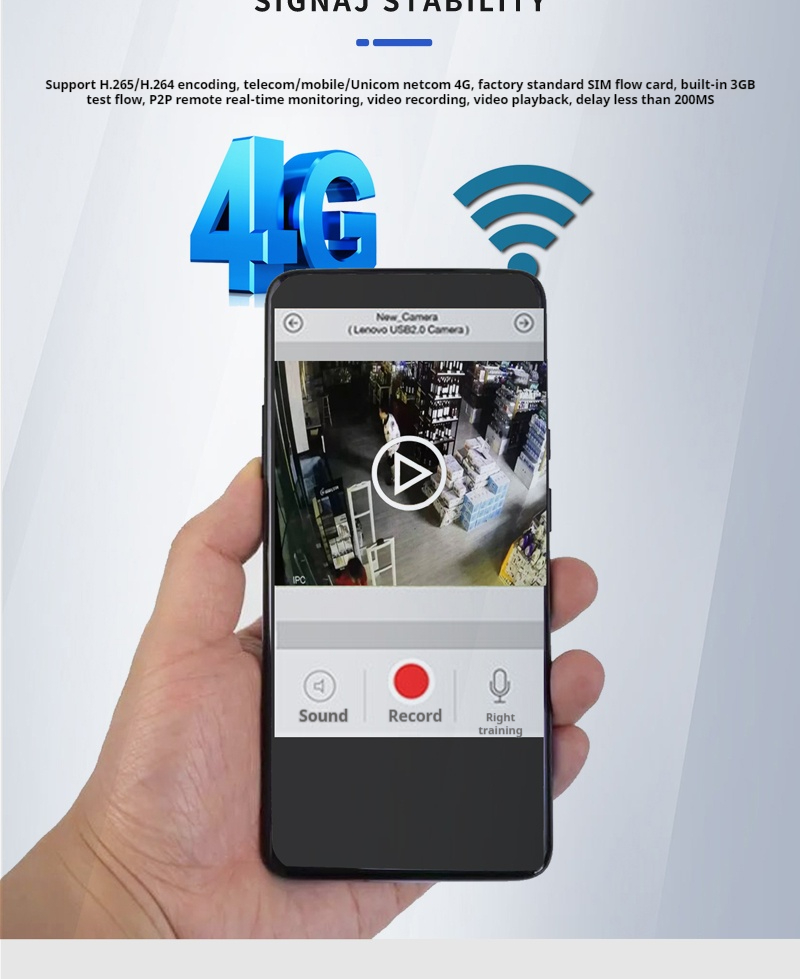

■Supports remote monitoring via mobile phone and PC, and supports cloud storage.
■Support WIFI: hotspot and STA LAN mode.
■Support 4G: China Mobile/China Telecom/China Unicom all network access.
■Support extended GPS/Beidou positioning.
■Support serial communication and data transparent transmission.
■Support lithium battery power supply and charging.
■Support extended POE power supply.
■Can be connected to LVDS coaxial cable transmission, up to 1 meter.

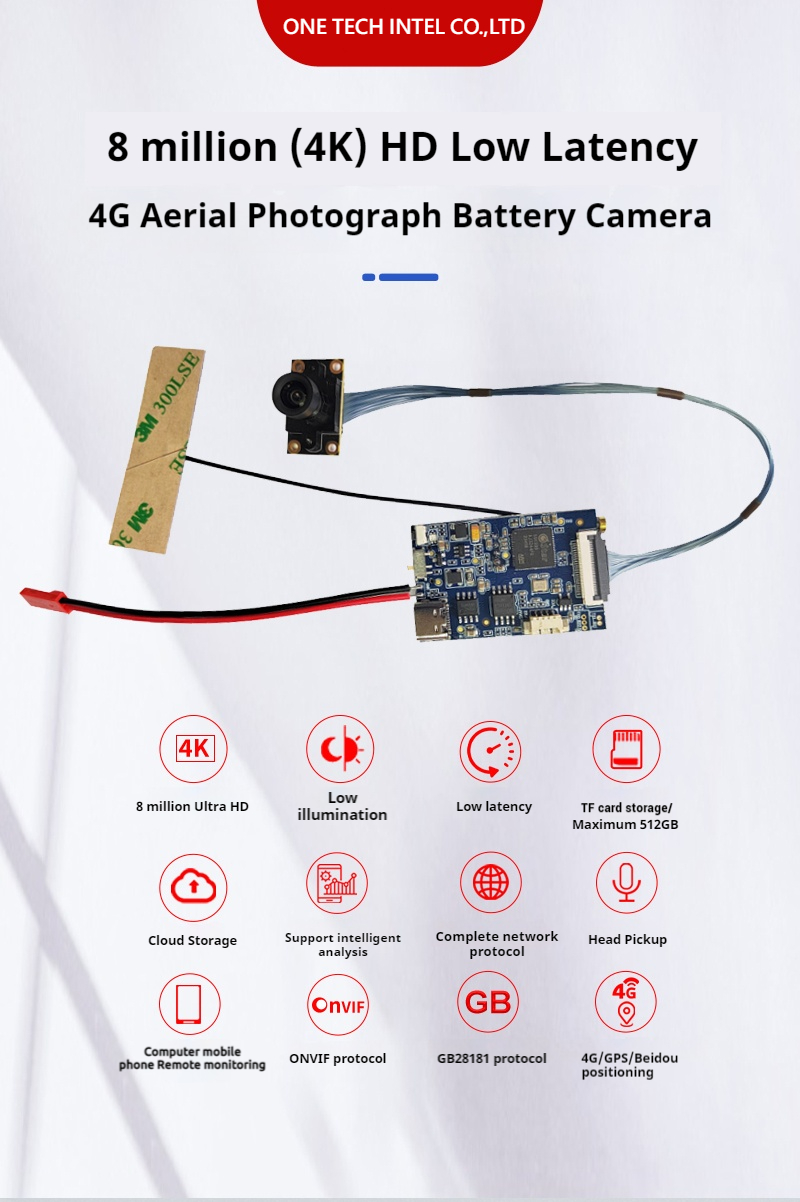

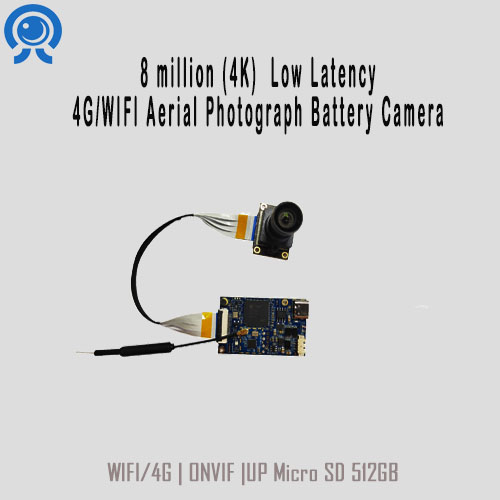

■Size is 45x28mm, main board and sensor board are separated, which is convenient for installation and miniaturization of products.
Packing List:
4G+wifi 4K 8MP camera module*1
USB cable*1
User manual*1
Power adapter*1
Specifications：
|
System Structure |
Master |
Embedded single-core 32-bit ARM A35 processor, pure hardware compression, internal integrated FPU , NEON , main frequency 1.2GHz |
|
DDR |
2Gb(built-in) |
|
|
Flash |
16MB |
|
|
System Architecture |
Linux |
|
|
Sensor |
Sony 1/2.8" 8MP low-light CMOS |
|
|
Audio and Video coding |
Video compression format |
H.264/H.265, High/Main/Baeline Profile encoding; MJPEG encoding |
|
Audio compression format |
G.711/AAC |
|
|
Main stream resolution |
3840x2160/20 frames; 2592x1920 (5 million)/30 frames; 2560x1440 (4 million)/30 frames; 2304x1296 (3 million)/30 frames; 1920x1080 (2 million)/30 frames |
|
|
Sub-stream resolution |
1920x1080(2 million)/30 frames;1280x720(1 million);720x480/30 frames; 640x480/30fps; 640x360/30fps |
|
|
Minimum illumination |
Color 0.08Lux@F1.2; Black and white 0.04@F1.2 |
|
|
Signal-to-Noise Ratio |
>42db (AGC OFF) |
|
|
Wide dynamic range |
Digital wide dynamic range >95db |
|
|
Maximum snapshot image |
3840x2160 (8 million) |
|
|
Maximum video input |
3840x2160 (8 million)/20 frames |
|
|
Video compression rate |
32Kbps-16Mbps continuously adjustable, supports CBR/VBR |
|
|
OSD Menu |
Support channel name, date and time superposition |
|
|
Image Flip |
Support horizontal and vertical flip |
|
|
Image Settings |
Brightness, contrast, chroma, sharpness, exposure, gain, white balance, etc. |
|
|
network Function |
Network Protocol |
TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP, RTMP |
|
Intelligent alarm |

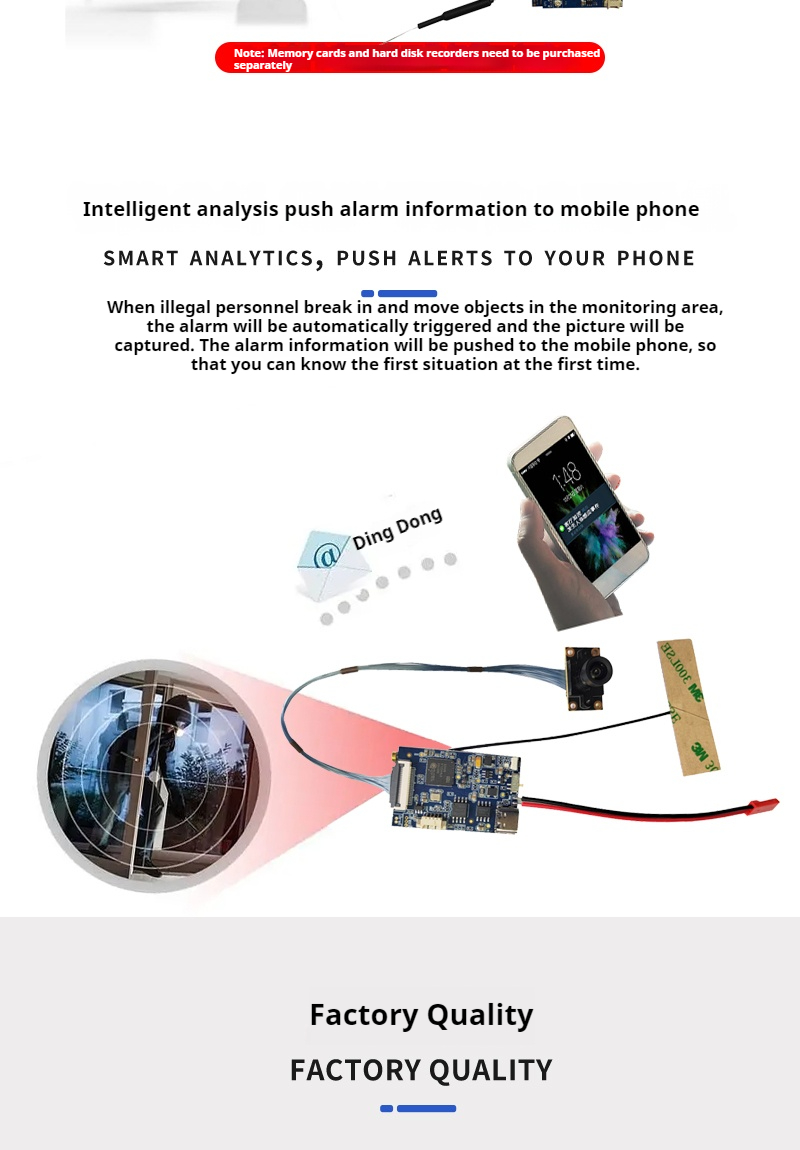

Supports motion detection alarm, video loss alarm, network failure alarm, linkage alarm, linkage recording, linkage snapshot |
|
|
FTP Upload |
support |
|
|
WIFI transmission protocol |
802.11b/g/n, support WEP, WPA, WPA2 encryption protocols |
|
|
Smart Analysis |
Motion Detection |
support |
|
IO alarm detection |
Support, 1 channel |
|
|
Alarm triggering event |
Snapshot, video recording, IO output, upload pictures and videos to FTP server |
|
|
4G |
Supported operators |
China Mobile, China Unicom, China Telecom |
|
Supported rate |
CAT1 |
|
|
WIFI |
Transport Protocol |
802.11b/g/n, support WEP, WPA, WPA2 encryption protocols |
|
Support Mode |
AP hotspot, STA LAN mode |
|
|
position |
Support satellite |
GPS, BeiDou, GLONASS |
|
Positioning error |
Less than 10 meters |
|
|
Data storage |
Data storage |
Video and picture files |
|
Storage mechanism |
Manual, automatic (cycle, timing, alarm switch, motion detection) |
|
|
ONVIF Protocol |
Standard ONVIF2.4 protocol |
|
|
Client browsing |
Supports IE6.0 and above (device with built-in Web Server) browser browsing, supports up to 10 users to access at the same time |
|
|
Mobile Client |
Support iPhone and Android systems |
|
|
Network Cloud |
Already connected to Qiniu Cloud, other cloud platforms can be connected as needed |
|
|
Local Storage |
Maximum support 512G |
|
|
Audio input interface |
Can be connected to microphone or pickup |
|
|
Hard board lens |
Lens diameter |
Can be equipped with M8, M9, M10, M12 lenses as needed |
|
Lens mount aperture |
20mm |
|
|
interface |
Battery interface |
2pin/2.0 battery connector (optional) |
|
USB interface |
Type C interface, can be charged and powered, maximum charging current 2A |
|
|
Audio input interface |
Linear input, 1Vvpp, connected to microphone or active pickup |
|
|
Audio output interface |
Linear output, 1Vvpp |
|
|
TF card interface |
1, supports up to 512GB |
|
|
Alarm input |
1, 3.3V level, low level is effective |
|
|
Alarm output |
1, 3.3V level, high level is effective |
|
|
Serial Port |
1 channel, 3.3V TTL level |
|
|
Reset interface |
1, long press for 5 seconds to restore to factory settings |
|
|
Indicator Lights |
Power indicator light: red light. Working status indicator light: green light. Normal system operation - green light flashes slowly; recording - green light flashes quickly; system abnormality: green light is off |
|
|
generally specification |
Operating temperature |
-20---70°C |
|
Operating humidity |
Below 90%RH |
|
|
Operating voltage |
DC4.5V-18V |
|
|
Power consumption |
With WIFI: about 2.4W (when transmitting data); with 4G: about 3W (when transmitting data) |
|
|
PCBA Dimensions |
Motherboard: 45mm(L)x28mm(W)x8mm(H) Sesnor board: 26mm (length) x 19mm (width) x 20mm (height) |
