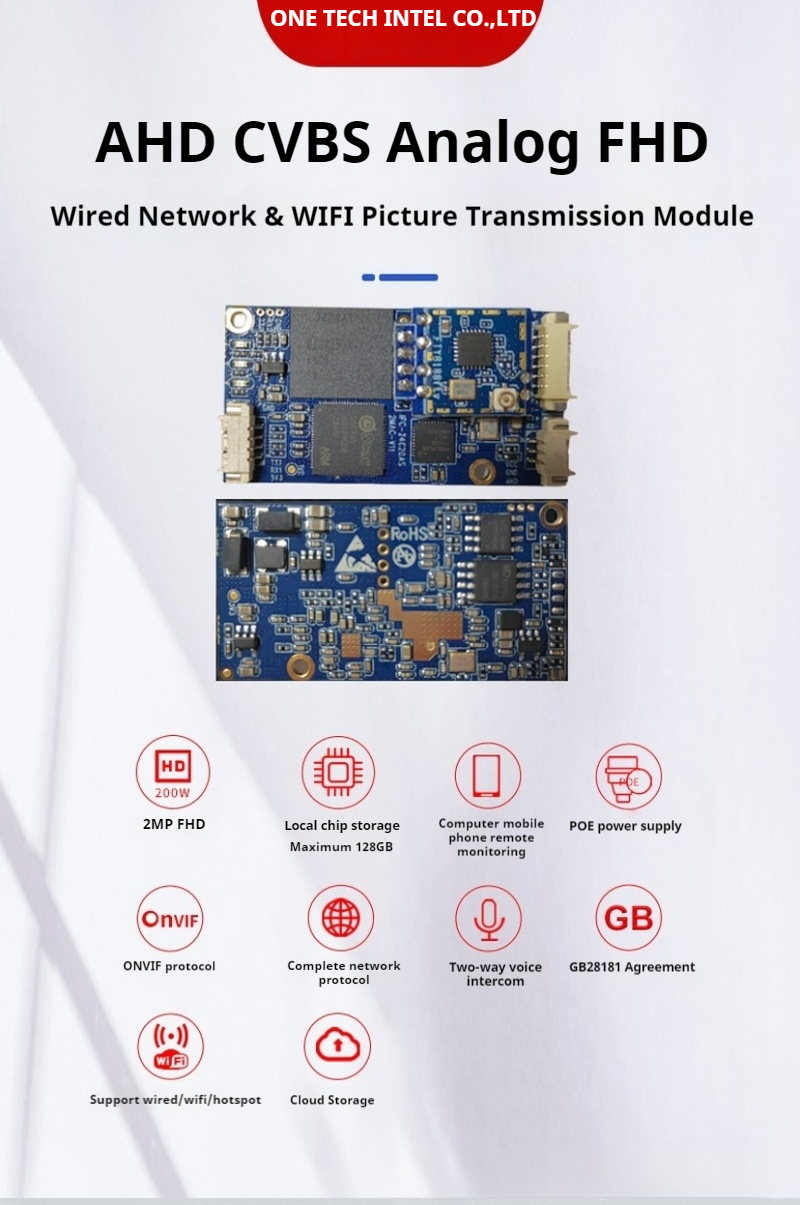

Features:

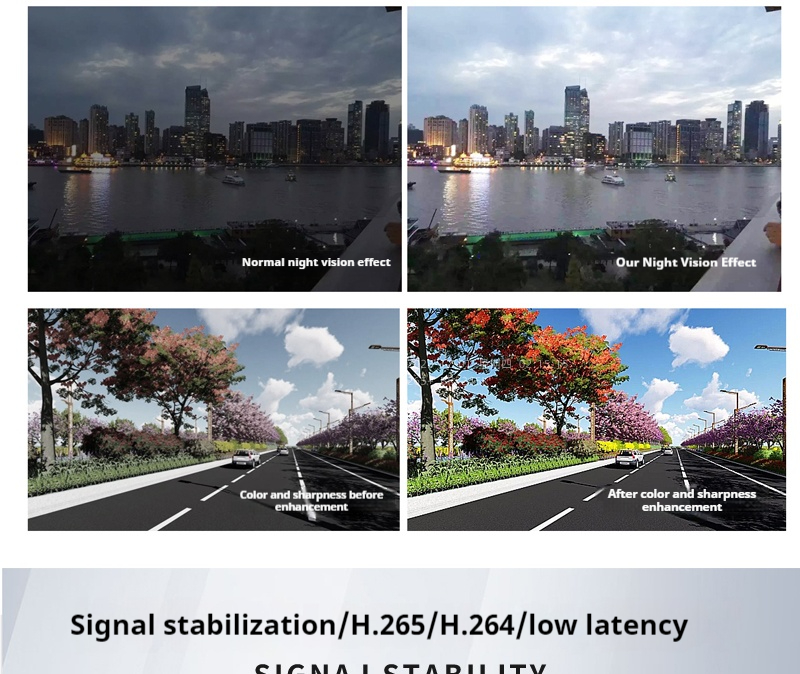

■ Support H.265+, H.265, H.264 encoding, ultra-low bit rate and high-definition picture quality.
■ Supports up to 2 million encodings and up to 1920x1080 @ 30 frames.
■ Support two-way voice intercom.
■ Support ONVIF2.4 standard protocol and GB28181 protocol, and can be connected to third-party backend/platform.
■ Supports remote monitoring via mobile phone and PC, and supports cloud storage.
■ Support extended 4G: China Mobile/China Telecom/China Unicom full network access.
■ Support extended GPS/Beidou positioning.
■ Support extended WIFI: hotspot and STA mode.
■ Support extended POE.
■ Support serial port and RS485 transmission.
■ Support various PAL and NTSC analog video inputs.
■ EMMC storage.

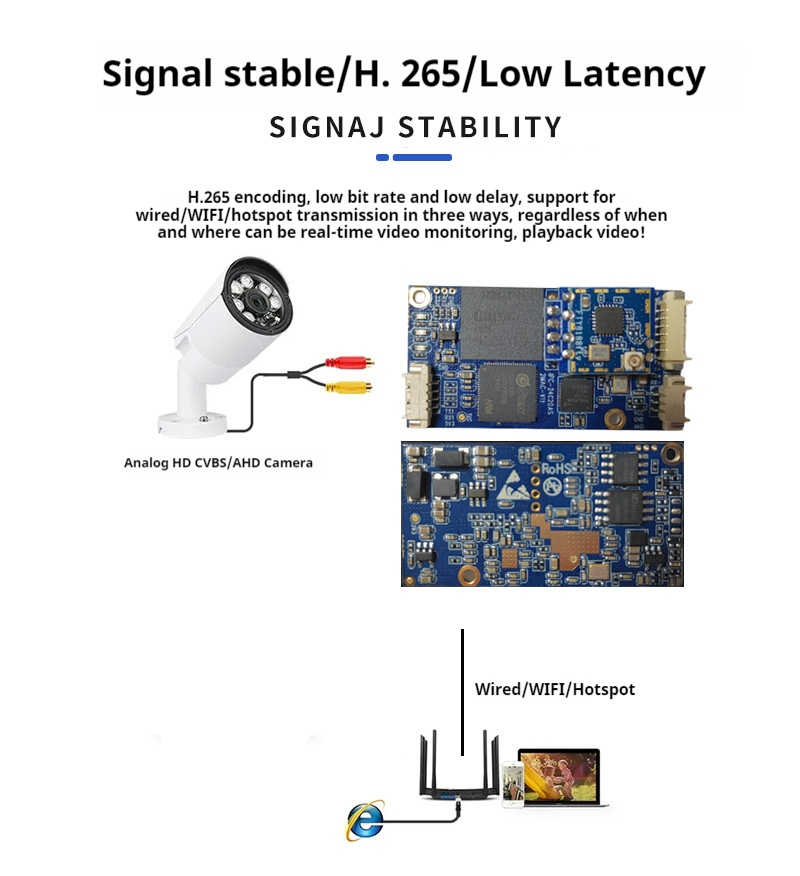

■ Compatible with CVBS analog standard definition and AHD analog high definition input, supporting all CVBS and AHD image boards on the market.
■ Size 38x38mm, easy to install and make miniaturized products.
Selling points:
Compatible with CVBS and AHD, supports all AHD and CVBS analog HD cameras of various resolutions on the market, H.265+, low latency, RS485, and supports customization and secondary development.
.jpg)
Specifications：
|
System Structure |
Master |

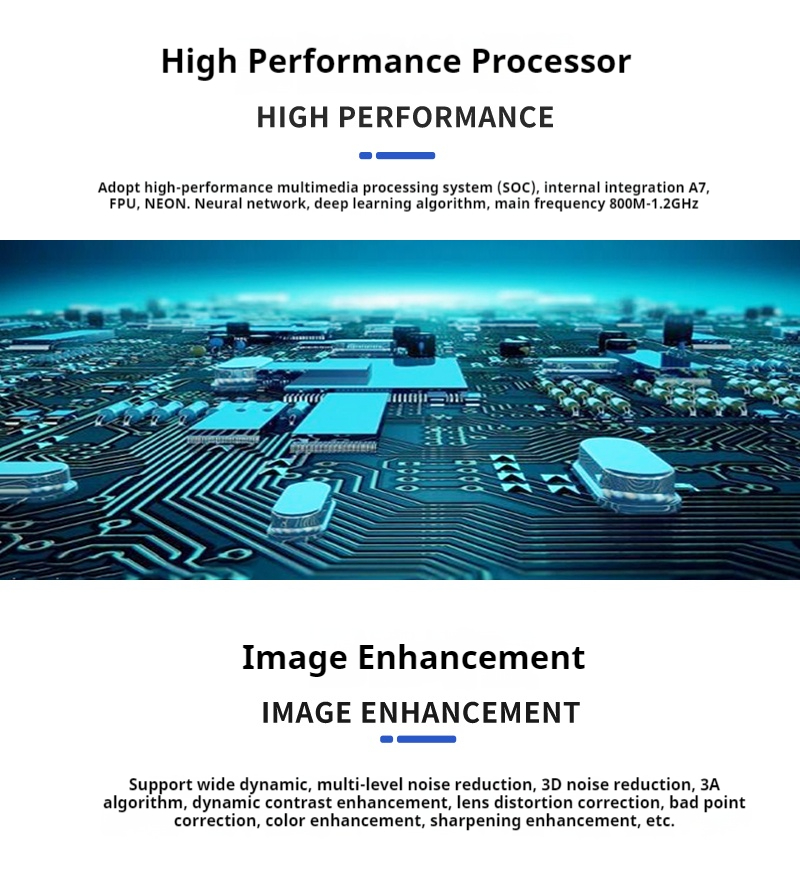

Embedded single-core 32-bit ARM A7, pure hardware compression, internal integration of A7 and FPU , NEON , main frequency 800MHZ |
|
DDR |
512Mb (built-in) |
|
|
Flash |
16MB |
|
|
System Architecture |
Linux |
|
|
Sensor |
AHD analog high definition, CVBS standard definition |
|
|
Audio and Video coding |
Video compression format |
H.264/H.265 High/Main/Base profile, JPEG/MJPEG Baseline encoding; support I/P frames |
|
Audio compression format |
G.711/ACC encoding, support audio 3A (AEC, ANR, AGC) |
|
|
Main stream |
1920x1080 (2 million)/30 frames; 1280x720 (1 million)/30 frames |
|
|
Secondary code stream |
640x480 (VGA)/30 frames; 640x360/30 frames; 320x240 (QVGA)/30 frames |
|
|
Minimum illumination |
Depends on AHD or CVBS sensor board |
|
|
Signal-to-Noise Ratio |
Depends on AHD or CVBS sensor board |
|
|

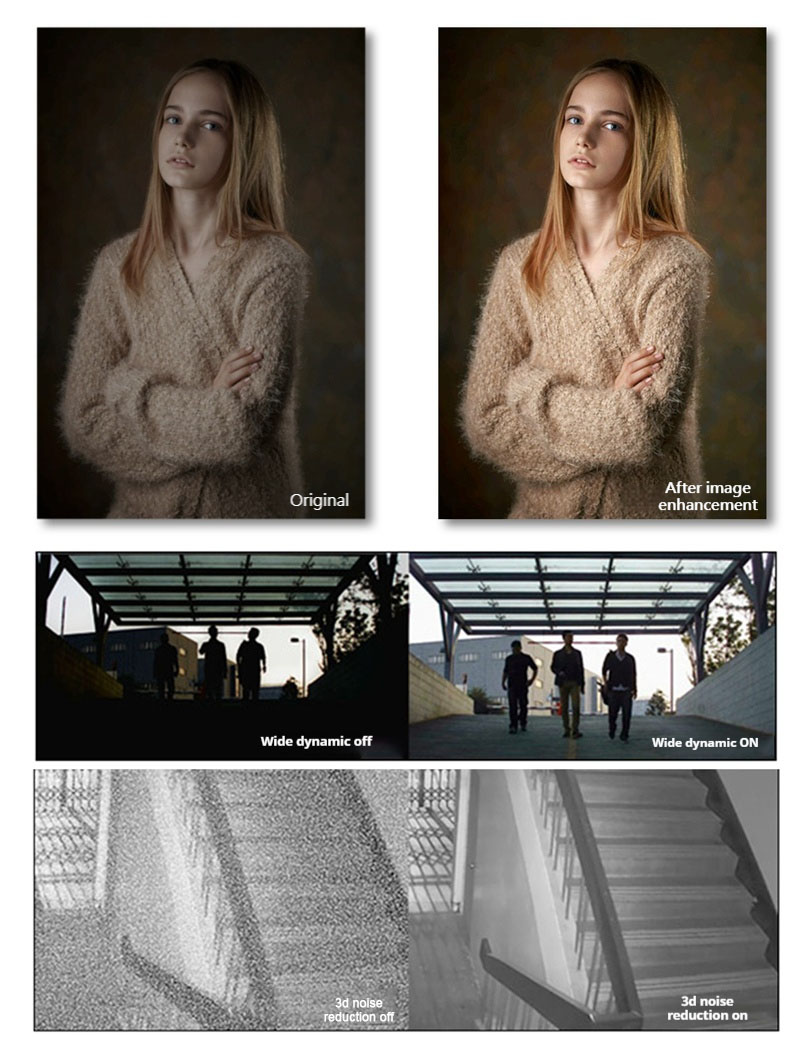

Wide dynamic range |
Depends on AHD or CVBS sensor board |
|
|
Maximum snapshot image |
1920x1080 (2 million) |
|
|
Maximum video input |
1920x1080(2 million)/30 frames |
|
|
Video compression rate |
32Kbps-20Mbps continuously adjustable, support CBR/VBR bit rate control mode |
|
|
OSD Menu |
4 -region pre-encoding OSD overlay |
|
|
Image Flip |
Support horizontal and vertical flip |
|
|
Network achievement able |
Network Protocol |
TCP/IP, UDP, RTP, RTSP, HTTP, DNS, DHCP, FTP, NTP, PPPOE, RTMP |
|
Intelligent alarm |
Supports motion detection alarm, linkage alarm, linkage video recording, and linkage snapshot |
|
|
FTP Upload |
support |
|
|
Cloud Storage |
support |
|
|
4G |
Supported operators |
According to local telecom operators |
|
Supported rate |
CAT1 (suitable for data/image transmission), CAT4 (suitable for video transmission) |
|
|
WIFI |
Transport Protocol |
802.11b/g/n, support WEP, WPA, WPA2 encryption protocols |
|
Support Mode |
AP hotspot, STA LAN mode |
|
|
position |
Support satellite |
GPS, BeiDou, GLONASS |
|
Positioning error |
Less than 5 meters |
|
|
number according to pass lose and live Storage |

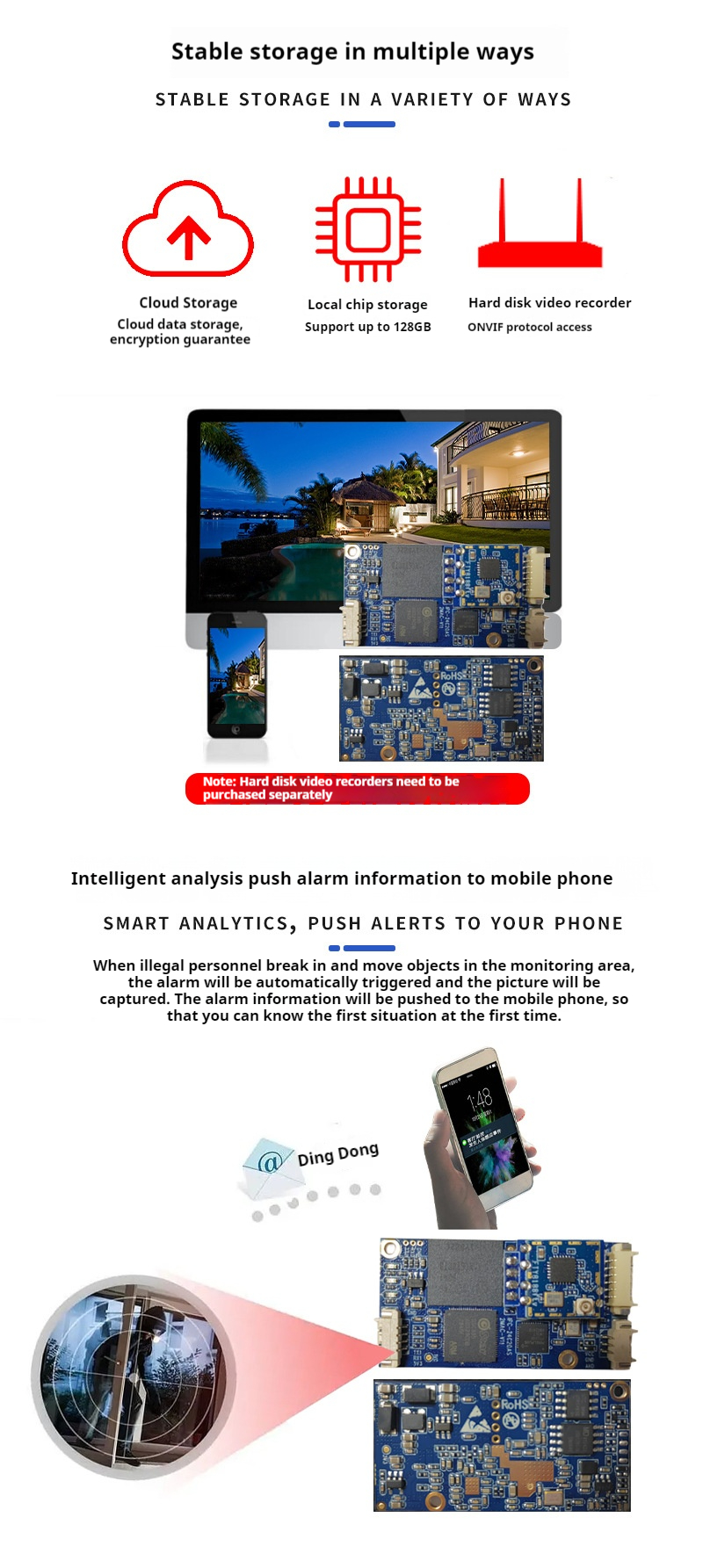

Data storage |
Video and picture files |
|
Storage mechanism |
Manual, automatic (cycle, timing, alarm switch, motion detection) |
|
|
ONVIF Protocol |
Standard ONVIF2.4 protocol |
|
|
GB28181 protocol |
support |
|
|
Client browsing |
Supports IE6.0 and above (device with built-in Web Server) browser browsing, supports up to 10 users to access at the same time |
|
|
Mobile Client |
Support iPhone and Android systems |
|
|

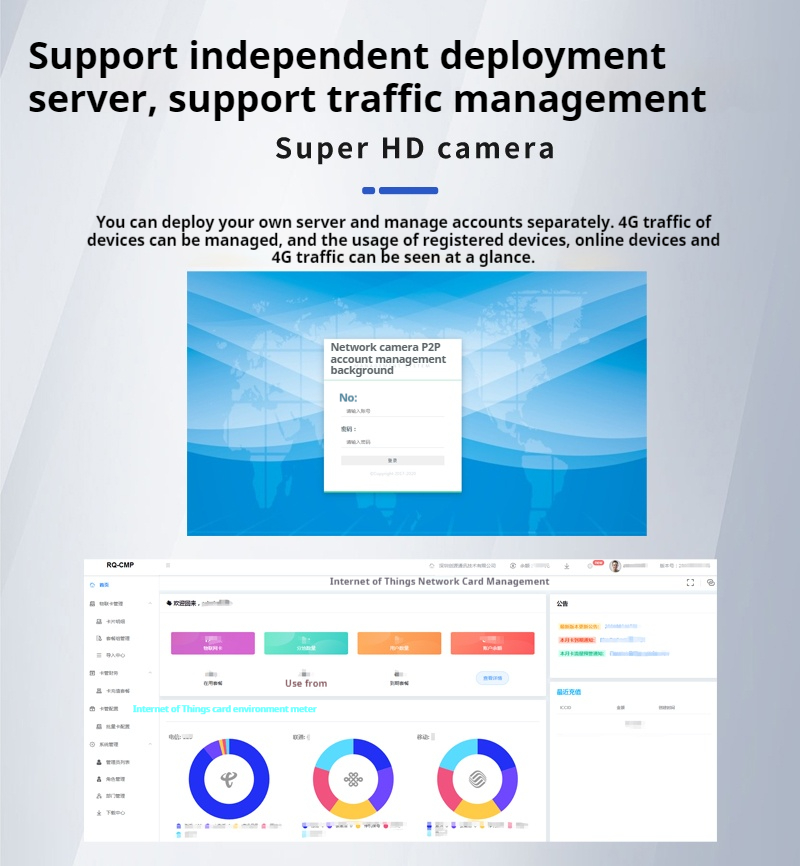

Network Cloud |
Already connected to iCloud /Huawei Haowang Cloud/Qiniu Cloud, other cloud platforms can be connected as needed |
|
|
Local Storage |
EMMC chip storage, maximum support 128GB, support loop recording |
|
|

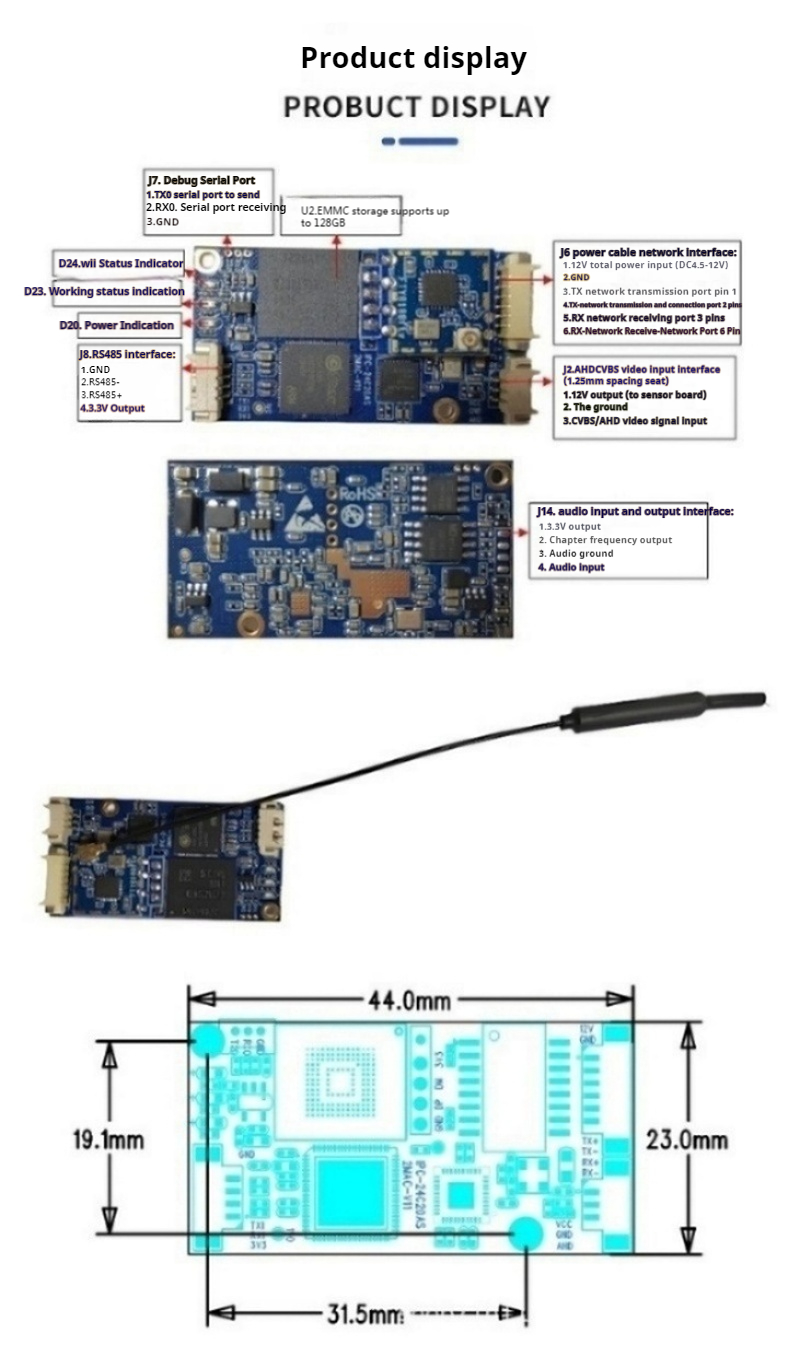

catch mouth |
Network Interface |
Standard 10/100M adaptive Ethernet, lightning protection and anti-static design |
|
USB interface |
Expandable WIFI |
|
|
Audio input interface |
Linear input /differential input, 1Vvpp |
|
|
Audio output interface |
Linear output, 1Vvpp |
|
|
Serial Port |
1 channel, TTL level 3.3V |
|
|
RS485 interface |
1, lightning protection and anti-static design |
|
|
General regulation |
Operating temperature |
-20---70°C |
|
Operating humidity |
Below 90%RH |
|
|
Operating voltage |
DC4.5---16V(+/-10%) |
|
|
Power consumption |
Without WIFI/4G: about 1.1W; with WIFI: about 1.3W (when transmitting data); with 4G: about 1.7W (when transmitting data) |
|
|
PCBA Dimensions |
44mm(length)x23mm(width)x7mm(height) |
Packing List:

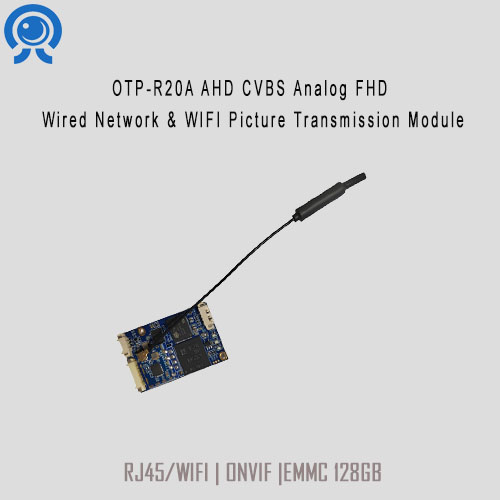

AHD CVBS Analog FHD Wired Network & WIFI Picture Transmission Module*1
USB cable*1
User manual*1
